CSV and Data Tables in Hugo

Am I reinventing reStructuredText with shortcodes? Don’t judge me.

I've been looking at screenshots all day. Here's Loud Dog instead.
I’ve been looking at screenshots all day. Here’s Loud Dog instead.

I figured out how to write Hugo shortcodes to generate tables from CSV and other formats. Didn’t even occur to me that it was possible — or this easy — so I had to share.

Warning

This approach only works as-is for uniform, shallow structures: every row has the same number of fields, and every field translates cleanly to a string. If you have more complex structures, you need more complex templates.

Why?

Most Markdown parsers include some way to handle tables. Usually it involves drawing your table with ASCII characters. Something like this, from an older post of mine about elscreen:

Function            | Keys    | Description
--------------------|---------|-------------------------------------
`elscreen-create`   | `C-z c` | Create a new screen and switch to it.
`elscreen-next`     | `C-z n` | Cycle to the next screen
`elscreen-previous` | `C-z p` | Cycle to the previous screen
`elscreen-kill`     | `C-z k` | Kill the current screen
`elscreen-help`     | `C-z ?` | Show ElScreen key bindings

I can read it just fine, but I find managing Markdown tables tedious without editor extensions. I want easy tables. I don’t care if they look like a table while I’m editing them. If I can copy and paste something into a shortcode? Even better.

reStructuredText and Asciidoctor both provide table-handling approaches beyond drawing ASCII, though the default rst table is lovely if you do like fiddling with columns. I looked at them for shortcode inspiration — particularly rst’s csv-table and list-table directives.

CSV tables

First up: CSV. I work a fair amount with CSV on the command line. I may want to copy and paste something into a table for a blog post every once in a while.

A csv-table shortcode could contain any CSV data. Maybe something from the Awesome Public Datasets? Nah, I’ll just use my Plausible.io visitor count for the last week.

{{< csv-table >}}
Date,Visitors
2020-05-28,66
2020-05-29,43
2020-05-30,33
2020-05-31,44
2020-06-01,74
2020-06-02,62
2020-06-03,73
2020-06-04,28
{{< /csv-table >}}

My shortcode receives that data as a string in the .Inner variable. How to turn that string into a table?

Just use transform.Unmarshal

Give transform.Unmarshal a formatted string, and it gives you back a data structure. CSV text becomes an array of arrays, which we turn into a table by iterating through everything with range.

layouts/shortcodes/csv-table.html

{{ $rows := .Inner | transform.Unmarshal }}

<table>
  {{ range $rows }}
    <tr>
      {{ range . }} <td>{{ . }}</td> {{ end }}
    </tr>
  {{ end }}
</table>

Voila! Instant table!

screenshot of CSV table
A CSV table

Not bad, but it could be better.

  • that first row provides column names, which works better as table headers than just another row
  • I prefer a particular style for numeric columns
  • what about a summary caption?

Give me a minute.

Fine-tuning the table with parameters

I’ll add a parameter for the caption. Maybe another parameter indicating whether to expect a header row, since the first row of CSV doesn’t always contain column names.

{{< csv-table caption="Site visitors, 2020-05-28 to 2020-06-04" header=true >}}
Date,Visitors
...
{{< /csv-table >}}

Now that I know how I want to use the shortcode, it’s time to implement the details.

layouts/shortcodes/csv-table.html

{{ $caption := .Get "caption" }}
{{ $useHeaderRow := .Get "header" }}
{{ $rows := .Inner | transform.Unmarshal }}

<table>
  {{ with $caption }}<caption>{{ . }}</caption>{{ end }}
  {{ if $useHeaderRow }}
    {{ $headerRow := index $rows 0 }}
    {{ $rows = after 1 $rows }}
    <tr> {{ range $headerRow }} <th>{{ . }}</th> {{ end }} </tr>
  {{ end }}
  {{ range $rows }}
    <tr>
      {{ range . }}
        {{ if (findRE "^\\d+$" .) }}
          <td class="numeric">{{ . }}</td>
        {{ else }}
          <td>{{ . }}</td>
        {{ end }}
      {{ end }}
    </tr>
  {{ end }}
</table>
  • if there’s a header row, after lets me skip past it when building the data rows
  • The regular expression I hand to findRE is a little naive, but it works for today

Better!

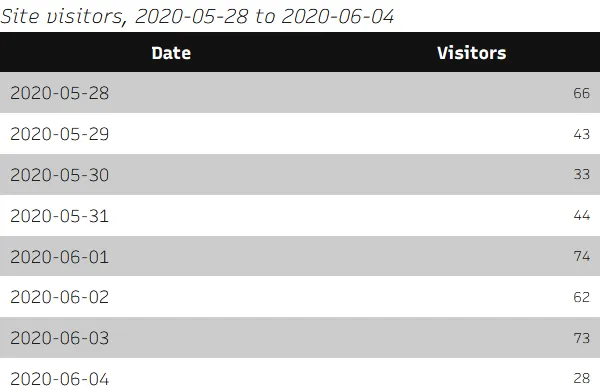

screenshot of csv table with headers and caption
screenshot of csv table with headers and caption

I still need to fiddle with my styles. This table’s a little wide for these values. Maybe later.

CSV is great, but transform.Unmarshal supports other formats. What about those?

Digression: data tables

I got a little carried away when I learned how much transform.Unmarshal can do. You could get a data structure from CSV, JSON, TOML, or YAML!

What about — what about a data table? Mind you, I’m not talking about Hugo data files or getJSON. That’s a great idea for later.

No, I’m talking about something similar to the csv-table case: arrays of JSON objects you paste in from somewhere else to add a little information to your blog post.

Heck, you don’t even need parameters. You could put caption and header details in the data! Might be a good idea to use a list of desired columns instead of a simple flag. That way we can pick and choose columns without editing the row objects.

Suppose I extracted details for the US and a couple neighbors from COVID19API.

{{< data-table >}}
{
  "caption": "COVID-19 updates for 6 Jun 2020",
  "headers": [
      "Country",
      "NewConfirmed",
      "TotalConfirmed",
      "NewDeaths",
      "TotalDeaths",
      "NewRecovered",
      "TotalRecovered"
  ],
  "rows": [
    {
      "Country": "Canada",
      "CountryCode": "CA",
      "Slug": "canada",
      "NewConfirmed": 1356,
      "TotalConfirmed": 191894,
      "NewDeaths": 122,
      "TotalDeaths": 15554,
      "NewRecovered": 890,
      "TotalRecovered": 53074,
      "Date": "2020-06-06T23:48:14Z"
    },
    {
      "Country": "Mexico",
      "CountryCode": "MX",
      "Slug": "mexico",
      "NewConfirmed": 4346,
      "TotalConfirmed": 110026,
      "NewDeaths": 625,
      "TotalDeaths": 13170,
      "NewRecovered": 3083,
      "TotalRecovered": 77841,
      "Date": "2020-06-06T23:48:14Z"
    },
    {
      "Country": "United States of America",
      "CountryCode": "US",
      "Slug": "united-states",
      "NewConfirmed": 24720,
      "TotalConfirmed": 1897380,
      "NewDeaths": 921,
      "TotalDeaths": 109132,
      "NewRecovered": 6704,
      "TotalRecovered": 491706,
      "Date": "2020-06-06T23:48:14Z"
    }
  ]
}
{{< /data-table >}}

The logic looks similar to csv-table, with adjustments for data format differences.

layouts/shortcodes/data-table.html

{{ $table := .Inner | transform.Unmarshal }}

<table>
  {{ with $table.caption }} <caption>{{ . | markdownify }}</caption> {{ end }}
  <thead>
    <tr>
      {{ range $table.headers }} <th>{{ . | humanize }}</th> {{ end }}
    </tr>
  </thead>
  <tbody>
    {{ range $table.rows }}
      {{ $row := . }}
      <tr>
        {{ range $table.headers }}
          {{ with (index $row .) }}
            {{ if (findRE "^\\d+$" .) }}
              <td class="numeric">{{ . | lang.NumFmt 0 }}</td>
            {{ else }}
              <td>{{ . }}</td>
            {{ end }}
          {{ end }}
        {{ end }}
      </tr>
    {{ end }}
  </tbody>
</table>

These header fields use camel case names like “TotalRecovered”. Piping them through humanize and title transforms them into distinct capitalized words: “Total Recovered.” That’s easier for me to read in a formatted table.

And — sadly, considering that the topic is COVID-19 cases — lang.NumFmt makes large numbers more readable.

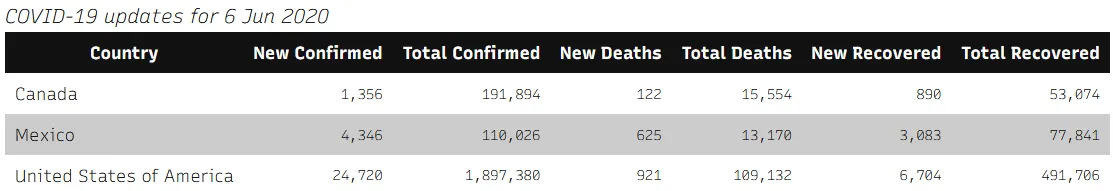

data table screenshot
data table

Wonderful! Wonderful formatting, anyways. The details are pretty sobering. People! Wash your hands and wear a mask!

There’s really only one slight problem with data-table. I don’t need it. Not today, anyways.

What I need: list tables

What about that first table I mentioned? You know, the elscreen quick reference? That is the kind of table I need a shortcode for. Something like a reStructuredText list-table, or Asciidoctor tables.

I tried different approaches with transform.Unmarshal and mashing YAML, TOML, or JSON lists into something useful. That got frustratingly brittle. Time to step back and reevaluate. What’s the simplest structure that still does what I want?

:thinking:

Maybe somethine line-oriented?

{{< list-table caption="Common `elscreen` commands" header=true >}}
Function
Keys
Description

`elscreen-create`
`C-z c`
Create a new screen and switch to it.

`elscreen-next`
`C-z n`
Cycle to the next screen

`elscreen-previous`
`C-z p`
Cycle to the previous screen

`elscreen-kill`
`C-z k`
Kill the current screen

`elscreen-help`
`C-z ?`
Show ElScreen key bindings
{{< /list-table >}}

Every line contains one field. Blank lines separate table rows. No special prefix characters needed, since everything’s already in a shortcode.

I like it. Easy to write, easy to read, and easy to parse with split. Well — you need to trim a leading newline because of how .Inner gets handed off, but that’s the only wrinkle so far.

layout/shortcodes/list-table.html

{{ $caption := .Get "caption" }}
{{ $useHeaderRow := .Get "header" }}
{{ $rows := split (trim .Inner "\n") "\n\n" }}

<table>
  {{ with $caption }}
    <caption>{{ . }}</caption>
  {{ end }}
  {{ if $useHeaderRow }}
    {{ $headerRow := index $rows 0 }}
    {{ $rows = after 1 $rows }}
    <tr>
      {{ range (split $headerRow "\n") }} <th>{{ . | markdownify }}</th> {{ end }}
    </tr>
  {{ end }}
  {{ range $rows }}
    <tr>
      {{ range (split . "\n") }}
        {{ if (findRE "^\\d+$" .) }}
          <td class="numeric">{{ . }}</td>
        {{ else }}
          <td>{{ . | markdownify }}</td>
        {{ end }}
      {{ end }}
    </tr>
  {{ end }}
</table>

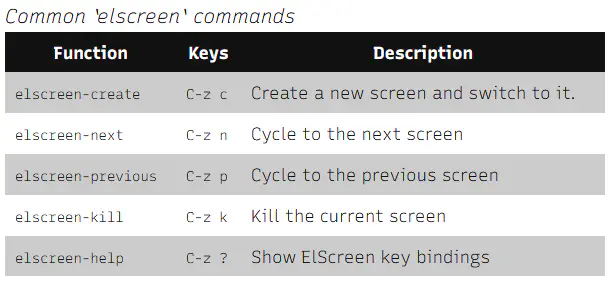

list-table screenshot
list table

Perfect. This will keep me going for a while. Time to stop before I get too clever.

What Next?

  • Make a universal data table shortcode.

Okay not really, but I can see a few specific conveniences I’d like to add eventually:

  • improve the numeric value handling to recognize and properly format decimal values, including money.
  • format dates and timestamps
  • support building a simple table from .Site.Data or getJSON
  • control column widths
  • control column alignment
  • refactor into partials where I can, so there’s less duplication between csv-table, list-table, and data-table

I might steal more ideas from reStructuredText. It’s fun!

Speaking of fun, the dog wants to go outside again.
