Letting Ruby build Asciidoctor files for Hugo

Stuff like this is why i don’t advertise my site repo

actually really proud of myself but this post needs all the disclaimers
actually really proud of myself but this post needs all the disclaimers

Stick with Markdown if you use Hugo. Use shortcodes or render hooks if you want to make things interesting. Experiment with reStructuredText or Asciidoctor — but anything past a few pages slows builds dramatically. Move away from Hugo if you prefer those formats. Try Nikola for rst blogs. Gatsby has a plugin to directly transform adoc content. You have options!

Asciidoctor?

Asciidoctor is yet another lightweight formatting language, with official implementations in Ruby, JavaScript, and Java. Processing tools transform it into HTML, PDF, and other formats. Like Markdown, I find it easy to read and write the format. Like reStructuredText and Org, it provides structures suited for technical and long form writing. Oh, and clearly labeled hooks for extending if the built-in structures don’t quite meet your needs.

There’s an older Python implementation called AsciiDoc, but Asciidoctor looks more actively developed.

What’s this got to do with Hugo?

Hugo shines with Markdown, but you can use other content formats as well. It supports Org files directly through go-org. reStructuredText is supported if you have rst2html.py installed. Asciidoc and Asciidoctor are supported if you have their processors installed. And like Jekyll, Hugo supports HTML as an HTML authoring language if you tack some front matter onto it.

I enjoy the flexibility. And that bit about supporting HTML as an authoring language is about to come in real handy.

go-org is nice, but ox-hugo excels if you want Hugo support tightly integrated with Org mode.

So what’s the problem?

What’s up with this?

$ hugo

                   |  EN
-------------------+-------
  Pages            | 1353
  Paginator pages  |  128
  Non-page files   |  442
  Static files     |   31
  Processed images | 1195
  Aliases          | 1261
  Sitemaps         |    1
  Cleaned          |    0

Total in 15929 ms

Sixteen seconds might look impressive compared to Jekyll. It’s more alarming if you know Hugo’s reputation for speed.

I think my Asciidoctor files might be causing this slowdown. I do have quite a few of them.

$ make formats
hugo list all | raku -e 'bag(lines[1..*].map({ .split(",")[0].IO.extension })).say'
Bag(adoc(206), html, md(424))

How to confirm this? Well, I could run hugo in debug mode and scan the output.

$ hugo --debug > debug.log

debug.log

Building sites … INFO 2020/05/14 21:44:50 syncing static files to /home/random/Sites/rgb-hugo/randomgeekery.org/
⋮
INFO 2020/05/14 21:44:50 Rendering contact.adoc with /home/random/Sites/rgb-hugo/scripts/asciidoctor ...
⋮
INFO 2020/05/14 21:45:07 Rendering post/2020/05/querying-hugo-content-with-python/index.adoc with /home/random/Sites/rgb-hugo/scripts/asciidoctor ...
⋮
Total in 17235 ms

Interesting. I only updated a single .adoc file — this one — but Hugo rebuilds all of them. It also spends about 17 seconds doing so. 17,000 of the 17,235 milliseconds spent in this build go to rebuilding mostly unchanged Asciidoctor files.

Okay.

Fine I’ll do it myself

I could always build the adoc files myself instead of making Hugo do it.

Hang on — is that even worth it?

How long does it take for a single process to build HTML from all the adoc files in my site? Not much point in this idea if Asciidoctor takes 17 seconds on its own.

All right. Let’s try this with roughly the same arguments Hugo does with external helpers.

build-adoc

require "fileutils"

require "asciidoctor"

SRC_DIR = "content"
BUILD_DIR = "adoc-out"

if File.exist? BUILD_DIR
  FileUtils.rm_r BUILD_DIR
end

Dir["#{SRC_DIR}/**/*.adoc"].each do |filename|
  # Mirror the nested folder structure where I found the `adoc` file
  dirname = File.dirname(filename)
  branch = dirname.sub %r[^#{SRC_DIR}/?], ""
  target_dir = "#{BUILD_DIR}/#{branch}"
  target_base = File.basename(filename).sub %r{adoc$}, "html"
  target_file = "#{target_dir}/#{target_base}"

  Asciidoctor.convert_file filename, to_file: target_file,
    header_footer: false, safe: true, mkdirs: true
end

This fills a temporary folder with Asciidoctor’s generated HTML, keeping it out of Hugo’s way.

$ time ruby scripts/build-adoc
0.61user 0.03system 0:00.65elapsed 98%CPU (0avgtext+0avgdata 20584maxresident)k
0inputs+3680outputs (0major+7188minor)pagefaults 0swaps

0.65 seconds to build all the .adoc files.

So yes. Building them fresh myself is quicker than 17 seconds. That’s about what I figured, since Hugo apparently starts a fresh Ruby process for each adoc file. I used a single process for all of them.

This experiment is worth pursuing further.

Give it a shot

It will be fiddly, though. I’m going to end up adding a build step, and complicating Hugo’s normally straightforward site generation process.

Keep the front matter

Asciidoctor has its own document header rules, but I don’t have to think too much about that. To better support static site generators, Asciidoctor can be told what to do with YAML front matter. I want front matter glued back to output before saving to Hugo’s content folder.

You can extend Asciidoctor at multiple points in the conversion pipeline, with code blocks or full classes. I’ll register a block extension for the postprocessor stage: after the document has been converted, but before it gets saved.


require "asciidoctor"
require "asciidoctor/extensions"

Asciidoctor::Extensions.register do
  # reinsert "front-matter" attribute
  postprocessor do
    # Create a YAML front matter + HTML content document that Hugo can work with
    process do |document, output|
      front_matter = document.attr "front-matter"
      output = "---\n#{front_matter}\n---\n\n#{output}"
    end
  end
end

Dir["#{SRC_DIR}/**/*.adoc"].each do |filename|

  Asciidoctor.convert_file filename, to_file: target,
    header_footer: false, safe: true, mkdirs: true,
    # extract front matter into a `front-matter` document attribute.
    attributes: {
      "skip-front-matter" => true,
    }
end

What about page resources?

For adoc files, I’ll treat the Asciidoctor content folder as the source of truth. Cover images and other page bundle files go with the adoc. build-adoc will copy them over when converting files.


Dir["#{SRC_DIR}/**/*.adoc"].each do |filename|

  Dir["#{dirname}/*"].each do |supplemental|
    # We're just looking for resource bundle files
    next if File.directory? supplemental

    # We already grabbed the adoc file(s)
    next if supplemental =~ %r{adoc$}

    FileUtils.cp supplemental, target_dir
  end
end

Only rebuild new stuff

I might save a little more time — and disk writes — by limiting my build to updated adoc and supplemental files.

Course, it helps to stop deleting BUILD_DIR.


  Dir["#{dirname}/*"].each do |supplemental|
    # We're just looking for resource bundle files
    next if File.directory? supplemental

    # We already grabbed the adoc file(s)
    next if supplemental =~ %r{adoc$}

    supplemental_base = File.basename supplemental
    target_file = "#{target_dir}/#{supplemental_base}"

    copy_needed = if File.exist? target_file
                    File.mtime(filename) > File.mtime(target_file)
                  else
                    true
                  end

    if copy_needed
      puts "Converting #{filename}"

      FileUtils.copy supplemental, target_file
    end

If processing a single file was more expensive, I’d use something more careful than a timestamp check.

Make it official

Let’s skip the gory details, but I eventually moved all the adoc posts, notes, and drafts to their own folder. Now build-adoc officially generates HTML content with YAML front matter for Hugo.

SRC_DIR = "adoc"
BUILD_DIR = "content"

Since Asciidoctor finishes so promptly, I’ll run it every time I build the site.

Makefile

.PHONY: adoc build
adoc:
    ruby scripts/build-adoc

build: adoc ## Build live version of site
    INCLUDE_ANALYTICS=1 hugo
    cp etc/robots.txt randomgeekery.org/
    cp etc/htaccess randomgeekery.org

What do we have now?

I finished my basic Asciidoctor + Hugo flow. How long does it take to build the site now? Let’s find out.

Every adoc file gets processed in the first run.

$ time make build
# every adoc file is converted
⋮
done
INCLUDE_ANALYTICS=1 hugo

                   |  EN
-------------------+-------
  Pages            | 1353
  Paginator pages  |  128
  Non-page files   |  431
  Static files     |   31
  Processed images | 1188
  Aliases          | 1261
  Sitemaps         |    1
  Cleaned          |    0

Total in 1416 ms
cp etc/robots.txt randomgeekery.org/
cp etc/htaccess randomgeekery.org
3.80user 0.78system 0:02.87elapsed 159%CPU (0avgtext+0avgdata 198236maxresident)k
24inputs+505056outputs (0major+19157minor)pagefaults 0swaps

Less than three seconds. I like that time more than 15-18 seconds.

I went to a bit of trouble to only process updated adoc files. Does it help?

$ time make build
ruby scripts/build-adoc
Converting adoc/draft/letting-ruby-build-asciidoctor-files-for-hugo/index.adoc
done
INCLUDE_ANALYTICS=1 hugo

                   |  EN
-------------------+-------
  Pages            | 1354
  Paginator pages  |  128
  Non-page files   |  432
  Static files     |   31
  Processed images | 1189
  Aliases          | 1271
  Sitemaps         |    1
  Cleaned          |    0

Total in 1458 ms
cp etc/robots.txt randomgeekery.org/
cp etc/htaccess randomgeekery.org
3.11user 0.72system 0:01.90elapsed 200%CPU (0avgtext+0avgdata 212324maxresident)k
64inputs+500976outputs (0major+61675minor)pagefaults 0swaps

Less than two seconds. Then again, load from other system processes can add a second — or more, if I opened a browser tab to some JavaScript-intensive URL.

But it appears to help somewhat. And again, I get happy when there are fewer disk writes.

Highlighting code samples

So at first, Asciidoctor wasn’t highlighting code samples. I had :source-highlighter: rouge in my document header, but it was being ignored. Rather than add preprocessor logic to ensure that the document header gets processed, I specified the same attributes for every file converted:


    Asciidoctor.convert_file filename, to_file: target_file,
      header_footer: false, safe: true, mkdirs: true,
      attributes: {
        "icons" => "font",
        "source-highlighter" => "rouge",
        "skip-front-matter" => true,
      }

All good now, right?

Rebuild failed:
"/home/random/Sites/rgb-hugo/content/post/2015/07/making-a-jekyll-collection/index.html:223:53": got closing shortcode, but none is open

Uh oh.

That’s not good.

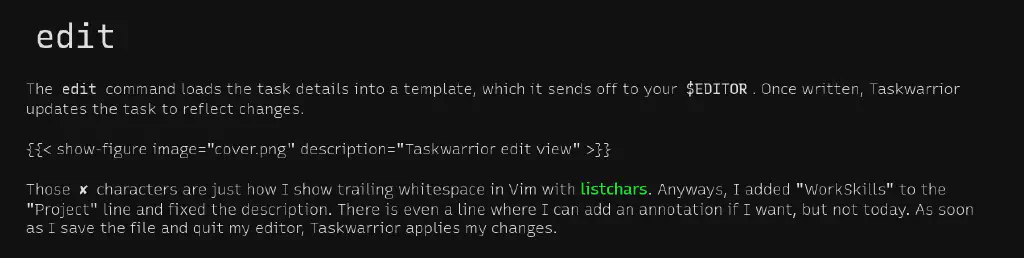

When Hugo sees {{ … }} in my new HTML content files, it thinks that’s a shortcode! That’s great if I want to invoke a shortcode. Not so great in a post with code samples for working with templates. Those aren’t supposed to get processed.

No problem. Rouge handles syntax highlighting for my adoc files. I need to take tokens that have already been transformed and make sure paired double curly braces are replaced with appropriate HTML entities. All I need is a slight adjustment to Rouge::Formatters::HTML#safe_span.

I’d prefer to subclass Rouge::Formatter::HTML, but Asciidoctor chooses and creates formatters right in the middle of a highlight method. I would also need to create a new Asciidoctor adapter for syntax highlighting and update all my adoc content to use that adapter. Great idea for later, but I don’t have that kind of time today.

I’ll monkey patch Rouge::Formatters::HTML directly, redefining safe_span to perform the needed transformation.


require "asciidoctor/extensions"
require "rouge"

# Make Rouge output safe for Hugo
class Rouge::Formatters::HTML
  def safe_span(tok, safe_val)
    safe_val = safe_val.gsub(/\{\{/, "{{").gsub(/\}\}/, "}}")

    if tok == Rouge::Token::Tokens::Text
      safe_val
    else
      shortname = tok.shortname \
        or raise "unknown token: #{tok.inspect} for #{safe_val.inspect}"

      "<span class=\"#{shortname}\">#{safe_val}</span>"
    end
  end
end

What do we have now?

I’m not sure. Let’s find out with a typical build all.

$ time make all
ruby scripts/build-adoc
Converting adoc/draft/letting-ruby-build-asciidoctor-files-for-hugo/index.adoc
done
INCLUDE_ANALYTICS=1 hugo

                   |  EN
-------------------+-------
  Pages            | 1354
  Paginator pages  |  128
  Non-page files   |  432
  Static files     |   31
  Processed images | 1189
  Aliases          | 1271
  Sitemaps         |    1
  Cleaned          |    0

Total in 1447 ms
cp etc/robots.txt randomgeekery.org/
cp etc/htaccess randomgeekery.org
perl scripts/generate-archives
prove -r
./t/site/test_archive.t .... ok
./t/site/test_links.t ......
# [mailto:brianwisti@pobox.com] is an email link, friend
./t/site/test_links.t ...... ok
./t/test_db.t .............. ok
./t/test_db_persistence.t .. ok
./t/test_pod.t ............. ok
All tests successful.
Files=5, Tests=10,  7 wallclock secs ( 0.26 usr  0.05 sys +  6.65 cusr  0.29 csys =  7.25 CPU)
Result: PASS
make all  10.44s user 1.15s system 114% cpu 10.108 total

Yeah there’s a lot of stuff there I still need to write about. Long story short: by directly using Ruby to convert Asciidoctor files into HTML for Asciidoctor, build and test combined take noticeably less time than build alone when Hugo had to manage the whole thing. And it’s not that different from how ox-hugo manages Org content. A similar approach would probably work for rst files.

I like it for now. Keeps me from getting bored.

But — and this is a big but — I couldn’t recommend this approach for normal people with things to do. Site generation now has more moving parts, which I must test and maintain if I want to share the least little note.

What now?

Yay, everything works!

What’s next? I’m not sure. Hugo is an ever-smaller piece of my site-building workflow. That’s somewhat intentional. Still grumbly about having to fiddle with all my Markdown files last year. But still.

  • Probably explore some AsciiDoctor extensions. If most of the work happens when I write a file, I won’t care much if that file takes a second to turn into HTML. And there are so many to choose from, from Asciidoctor Diagram to the Extensions Lab and beyond.

  • Maybe turn my shortcodes into macros? Write some of my own extension classes?

  • Keep exploring site generators. I love to putter. A framework that encourages puttering might suit me better than Hugo. Eleventy, for example.
